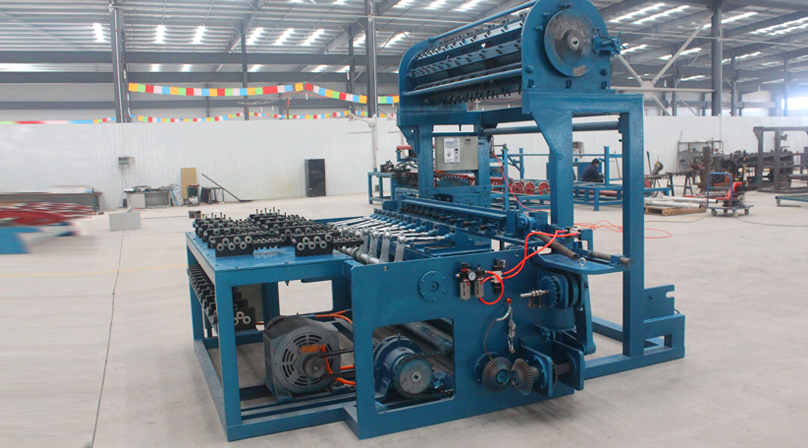

Field Fence Machine

   TYPE   BHA1880mm  BHA2000mm
   Wire Diameter   1.8‐3.4mm   1.8‐3.4mm
   Fence Length   10‐200m   10‐200m
   Cross wire space   50mm,100mm,150mm,200mm..max 350mm( by50mm)   50mm,100mm,150mm,200mm..max 350mm( by50mm)
   Line wire space   Send mail to me request the drawing.   Send mail to me request the drawing.
   Line wire No   13line   18line
   Top/Bottom Wire Dia   2.0‐3.4mm   2.0‐3.4mm
   Line wire Dia   1.8‐2.5mm   1.8‐2.5mm
   Cross wire Dia   1.8‐2.5mm   1.8‐2.5mm
   Note:Special type can be made a ccording to client’s request.

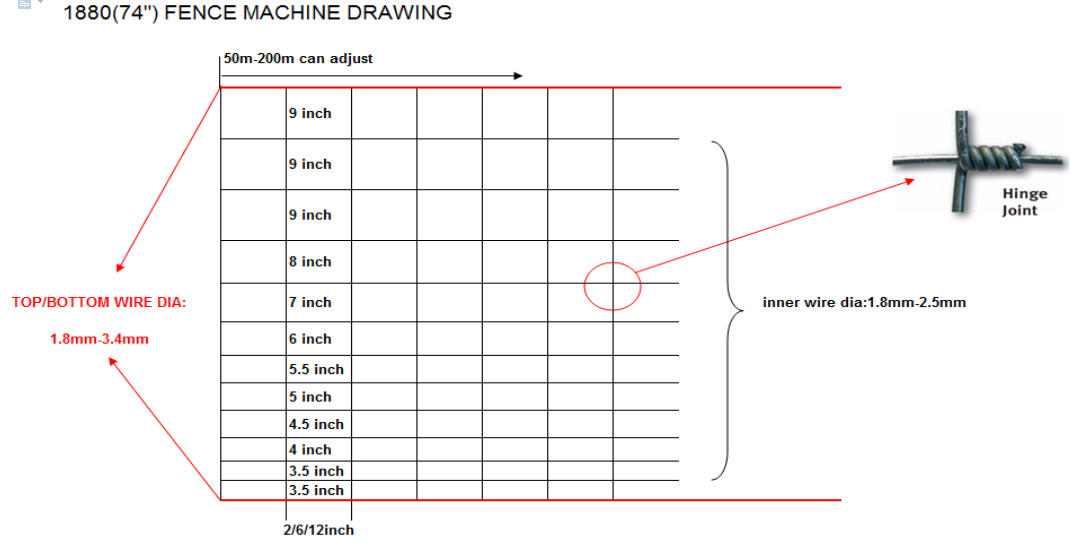

fence drawing (2).png
